POWER THAT DEFINES RESULTS
Solis S16 is your one-stop solution for all your needs in gardens and lawns. This Agri expert comes equipped with a heavy-duty engine to provide high power in your lawns.
Additionally, S16 can work on any terrain and that too with smooth transmission. We are sure that with S16, you can take your endeavours of hobby farming, to a whole new level at your comfort.[/vc_column_text][vc_row_inner css=”.vc_custom_1590569584410{margin-bottom: 0px !important;}”][vc_column_inner width=”1/2″]

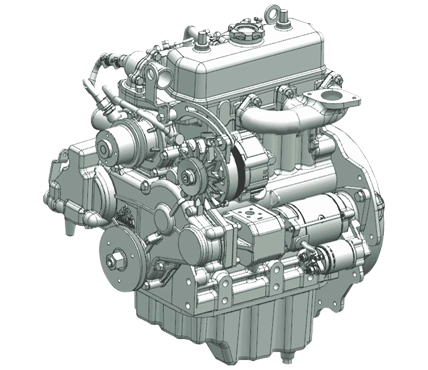

XTRA Efficient Stage V 3 Cylinder S- Tech Engine

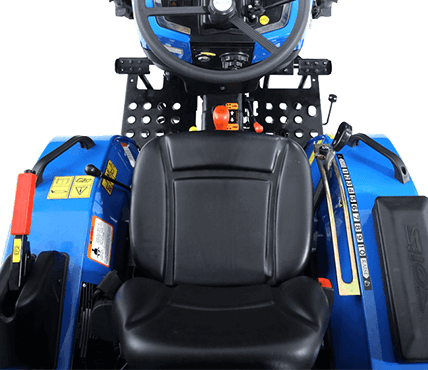

Spacious Operator area

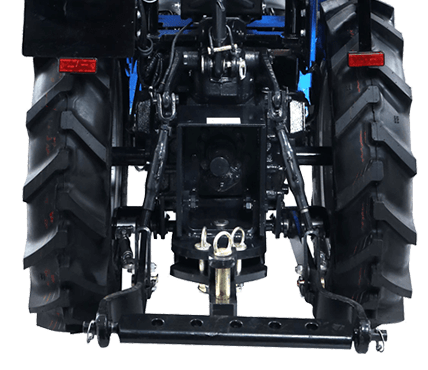

Hydraulic Lifting Capacity 500KG

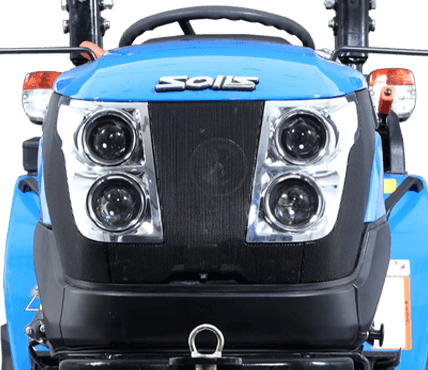

Twin Projector Headlamps
SMART ERGONOMICS DESIGN
EASY OPERATE METAL BONNET
TWIN PROJECTOR HEADLAMPS
AGRI/IND./TURF TYRE OPTION
RELIABLE MECHANICAL TRACTOR
POWER PACKED ENGINE
REINFORCED SAFETY FEATURES
[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_btn title=”Download Brochure” color=”blue” align=”center” button_block=”true” css=”.vc_custom_1645016555027{background-color: #1e73be !important;background-position: center !important;background-repeat: no-repeat !important;background-size: cover !important;border-radius: 4px !important;}” link=”url:https%3A%2F%2Fsolisworld.com%2Fwp-content%2Fuploads%2FBrouchers%2Ftractors%2Fsolis-s-16.pdf|title:Solis%20S%2016|target:%20_blank|”][/vc_column_inner][/vc_row_inner][vc_column_text]
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_text_separator title=”TECHNICAL SPECIFICATION” color=”black” el_class=”seper” css=”.vc_custom_1534146954319{border-top-width: 100px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_tta_tabs alignment=”center” active_section=”1″ no_fill_content_area=”true” el_class=”optequpisj”][vc_tta_section i_icon_fontawesome=”fas fa-cogs” add_icon=”true” title=”Technical specifications” tab_id=”1645010481048-81a9e202-8ca2″][vc_column_text]
| FEATURES | S16 | ||
| ENGINE | |||
| Engine Type | ITL 3 Cylinder 16 Hp | ||
| HP Category | 16 | ||
| No. of Cylinders | 3 | ||
| Aspiration | Naturally | ||
| Cubic Capacity (cc) | 979 | ||
| Rated RPM (+/-25mm) | 2700 | ||
| Air Cleaner | Dry with clogging sensor | ||
| Cold Start | Standard | ||
| Max Torque (Nm) | 48 | ||
| Exhaust | Silencer in the engine compartment, downward discharge |
||
| TRANSMISSION | |||
| Drive | 4 WD | ||
| Clutch | Single Clutch | ||
| Gearbox | 6 Forward + 2 Reverse | ||
| Front Axle | 4WD | ||
| Transmission | SLIDING MESH | ||
| SPEED (FORWARD) | |||
| Maximum Speed (Km/Hr) | 15.1@2900 | ||
| Minimum Speed (Km/Hr) | 1.36@rated | ||
| BRAKES | |||
| Brakes | Dry drum brake | ||
| Type of Actuation | Mechanical | ||
| Parking Brake | Independent | ||
| Differential Lock | |||
| Differential Lock | Yes, Foot Operated | ||
| PTO | |||
| PTO (rpm) | 540, 1000 | ||
| PTO (actuation) | Mechanical | ||
| STEERING | |||
| Steering | Mechanical | ||
| ELECTRICAL | |||
| Battery | 12V, 60 Ah | ||
| Alternator | 12V, 42 A | ||
| Seven Pin Trailer Socket | Standard | ||
| HYDRAULICS | |||
| 3 Point Linkage | Cat 1-N | ||
| Stay Bars | Anchor Chain | ||
| Additional hydraulic circuit | 1DA (Optional Feature) | ||
| Hydraulic Lifting Capacity | 500 Kg | ||
| Lift Rods | Standard | ||
| Litre per Minute(LPM) | 12 | ||
| SAFETY SWITCH | |||
| PTO Safety | Standard | ||
| Neutral Safety Switch | Standard | ||
| Clutch Safety Switch | Standard | ||
| CAPACITY (LTRS)(+/-5%) | |||
| Fuel Tank (Lit) | 26 | ||
| TURNING RADIUS | |||
| Without brakes (m) as per standard tyres | 3.2 (RHS), 3.3 (LHS | ||
| TYRE | |||
| Front | 5.00-12 | ||
| Rear | 8.00-18 | ||
| Tyres | |||
 Radial Agri: Front | Rear |
 Turf: Front | Rear |
 Ind: Front | Rear |
 GALAXY PRO |
| Front 6.5/80-12 REAR 280/70 R18 |
23×8.50-12 33×15.5-16.5 |
23×8.50-12 33×15.5-16.5 |
FRONT 220/55R12 REAR 280/70R16 |
| Front loader | YES optional | ||
[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fas fa-arrows-alt” add_icon=”true” title=”Dimensions” tab_id=”1645010481065-1cf54f82-bebf”][vc_column_text]
| DIMENSION & WEIGHT | |||
| Weight (Kg) | 970 | ||
| Wheel Base (mm) | 1420 | ||
| Total Length (mm) | 2735 | ||
| Total Width (mm) | 945(max)-940(min) | ||
| Height (mm) Up to ROPS | 1945 | ||
| Min Ground Clearance (mm) | 200 | ||
| Front Track (mm) | 805 | ||
| Rear Track (mm) | 715 |
[/vc_column_text][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fas fa-arrows-alt” add_icon=”true” title=”Dimensions” tab_id=”1645010716071-0d27e82b-3628″][/vc_tta_section][vc_tta_section i_icon_fontawesome=”fas fa-check” add_icon=”true” title=”special features” tab_id=”1645014073454-2943c929-7b8e”][vc_column_text]
| OTHERS | |||
| Fuel Indicator Gauge | Standard | ||
| Front Tow Hook | Standard | ||
| Trailer Hitch | Drawbar / Optional Towbar | ||
| ROPS | YES | ||
| OPTIONAL FEATURES | |||
| Cabin Option | NO | ||
| Front & Rear Weights with std. Ballast | Front weights 30 Kg – 2 x 15 Kg (Optional Feature) | ||
| Beacon Light | Optional |
[/vc_column_text][/vc_tta_section][/vc_tta_tabs][vc_column_text]*Data and specifications are subject to change without any advance notice due to continuous product improvement and development. All Dimensions are with standard tyres[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator][/vc_column][/vc_row][vc_row][vc_column][vc_custom_heading text=”RELATED PRODUCTS” font_container=”tag:h2|text_align:left|color:%232957a4″ use_theme_fonts=”yes” el_class=”reltdcust”][vc_column_text][slide-anything id=”10833″][/vc_column_text][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column][vc_custom_heading text=”MAJOR APPLICATIONS” font_container=”tag:h2|text_align:left|color:%232957a4″ use_theme_fonts=”yes” el_class=”reltdcust”][vc_column_text]S20 is the most reliable compact farming professional when it comes to elevating your farming potential to the next level. This smart tractor is designed for perfection in every farm venture and is highly useful in various applications. The powerful and fuel-efficient engine enables grass cutting and loader applications with ease. Moreover, whether it’s clearing the snow with extra efficiency or levelling the path to success, S20 delivers agile performance in every aspect.[/vc_column_text][vc_row_inner][vc_column_inner][vc_column_text][wonderplugin_gridgallery id=2][/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column][vc_custom_heading text=”SUGGESTED IMPLEMENTS” font_container=”tag:h2|text_align:left|color:%232957a4″ use_theme_fonts=”yes” el_class=”reltdcust”][vc_column_text][slide-anything id=”10840″][/vc_column_text][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column][vc_column_text]
| DESCRIPTION | SL FM-80 | SL FM-93 | SL FM-106 | SL FM-132 | SL FM-158 |
| OVERALL LENGTH | 990 | 1120 | 1250 | 1501 | 1770 |
| OVERALL WIDTH | 784 | 918 | 1043 | 1316 | 1568 |
| OVERALL HEIGHT | 660 mm | ||||
| 3 POINT LINKAGE CAT. |
CAT I & II | ||||
| BLADE TYPE | Y-TYPE FLAIL BLADE | ||||
| NO. OF BLADES | 24 | 28 | 32 | 40 | 48 |
| ROTOR SWINGING DIA. | Ǿ263 mm | ||||
| 3PT HITCH | FLAT LINK TYPE (50X8) | ||||
| PTO RPM | 540 @Rpm | ||||
| REAR ROLLER | COMPACT ROLLER TYPE DIA.89×6 | ||||
| TRACTOR HP | 12-30 Hp. | ||||
| WEIGHT Kgs. | 133 Kgs. | 142 Kgs. | 150 Kgs. | 175 Kgs. | 195 Kgs |
[/vc_column_text][vc_column_text]
| FM-GEAR BOX | |||||
| PRIMARY GEAR BOX | @540RPM | ||||
|
1
|
GEAR PAIR |
GEAR RATIO
|
OUTPUT RPM
|
REMARKS
|
|
| DRIVE | DRIVEN | ||||
| 25 | 9 | 2.77 | 1495.8 | Input for Belt Transmission | |
| SECONDARY BELT DRIVE | |||||
| 1 | 170 | 120 | 1.41 | 2109 | Rotor “rpm” |
[/vc_column_text][/vc_column][/vc_row][vc_row disable_element=”yes”][vc_column][vc_column_text]
SOLIS 16 WITH FLAIL MOWER
| Model | EX-Works in Euro (Package price) |
| Solis 16+Flail Mower 80cm | 4250 |
| Solis 16+Flail Mower 93cm | 4269 |
| Solis 16+Flail Mower 106cm | 4286 |
| Solis 16+Flail Mower 132cm | 4327 |
| Solis 16+Flail Mower 158cm | 4370 |
